Making a Rondel Dagger – Part 2

Today I planted new cherry tree but there was not much that I could otherwise meaningfully do, so I have spent about 40 minutes testing my belt grinder. It has worked reasonably well, but the supporting table needs improvement.

I chose this particular file for this project because it is thick at the base – almost 6 mm – and it already had a distal taper. That means I do not need to grind of as much material, but it is actually more challenging to work with, and therefore better exercise.

Centerline for he edge.

Centerline for the edge.

First problem was scribing the center line for where the edge shall be. Due to the taper I could not use my scribing tool because it scribes line at a constant distance from an edge. Luckily the curvature is very mild, so I could do with a steel ruler for most of the way and steady(ish) hand for the rest. I am not fond of measuring, I prefer to eyball the work, but for blade symmetry is important. The more asymmetrical the roughed out blade, the more it warps in quench. Very slight warp can be ground off, but big warp not. And of course grinding off a warp on hardened blade is tougher on the abrasive belts, and those do not grow on trees.





Scribed bevel lines.

Scribed bevel lines.

After scribing the center line, I also scribed two lines for where the bevels shall go. This dagger will have only one cutting edge, and in order to make it more useful as an ordinary knife, the bevel should go almost all the way to the spine at first grind, and wander de-facto all the way to it during polishing. On the other hand shallower bevel is easier to make and makes for stiffer blade. At this point I have not decided on the way I will do it. I scribed two bevel lines and decided to grind to the first one and reconsider.

With these preparations done, which took only about five minutes, I have spanned a 60 grit belt on my grinder and started. First time I was grinding with the use of supporting table and it was a great help at first and slight hindrance later on. For me it might be good to use the table for first facing and then go back to free-hand. I am slowly finding my personal way of doing these things. After slightly over half an hour I ground both sides to the first bevel line and had to call it quits for the day. Now I am considering my next step. Grind or not to grind, that is the question.

Ground bevels

©Charly, all rights reserved.

Making a Rondel Dagger – Part 1

When the weather is not suitable for work outside, I will make use of my belt grinder, now  Mark 2. So today I took another old file and I decided to make a dagger out of it. The inspiration is dagger used by Vesemir and Ciri in the game Witcher 3, but there will be some design changes even for the blade (less daggery, more knifey). I will post my progress, but beware that I am no expert, just a self-taught hobbyist goofing around. Risk of concussions from facepalming for any expert. You have been warned.

I started with an old file that I threw in the stove fire last year to soften the steel. I cleaned some of the rust on the belt grinder when I was testing the new design. But before proceeding I needed to make the tang slightly longer. So today I just made the tang more pointy and chamfered the edges. Then I took an old piece of round stock of structural steel, cut it lengthwise for a few cm and fitted it onto the file tang.



Old rusty file

Old rusty file

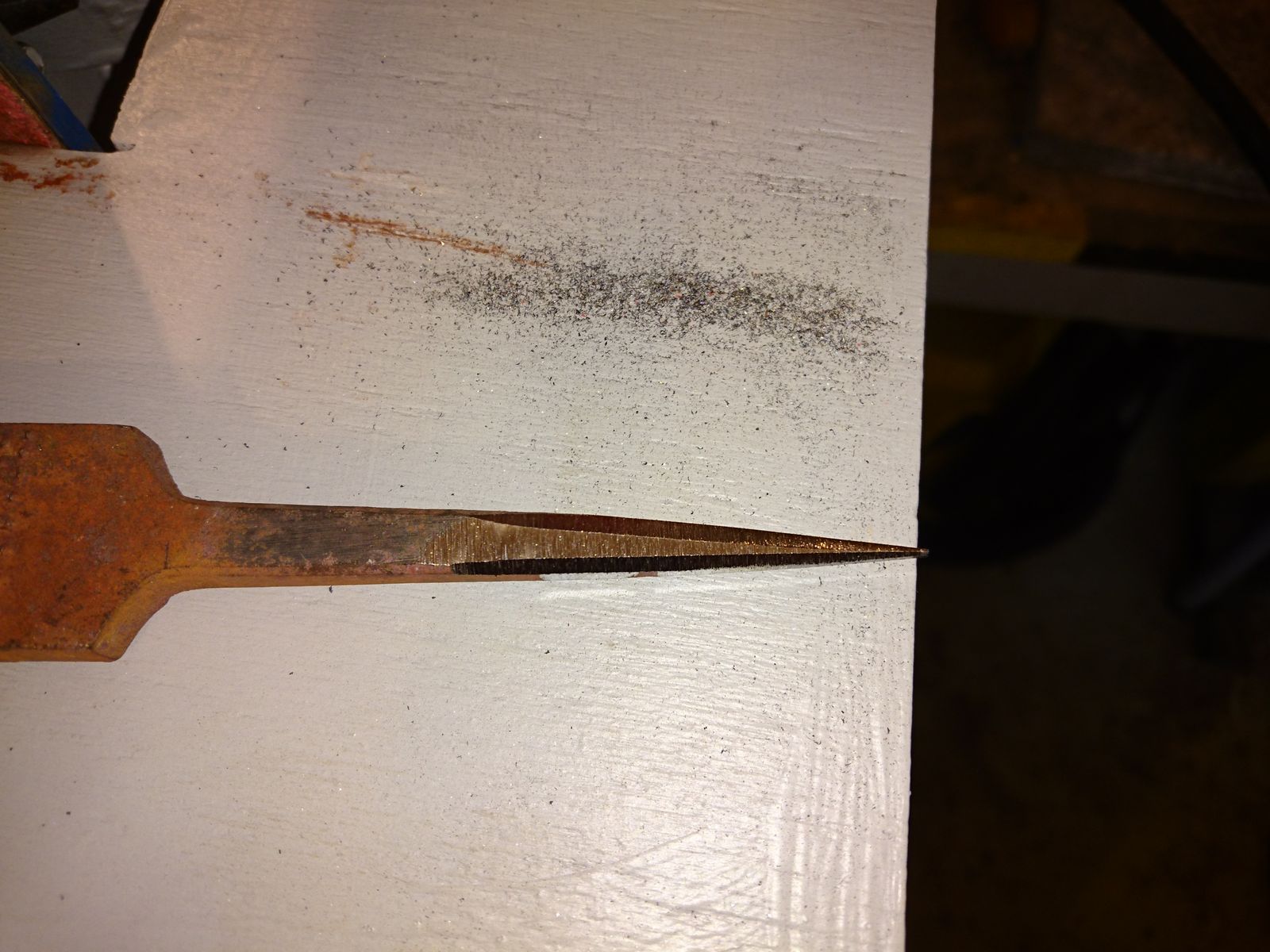

Chamfered file tang

Chamfered file tang

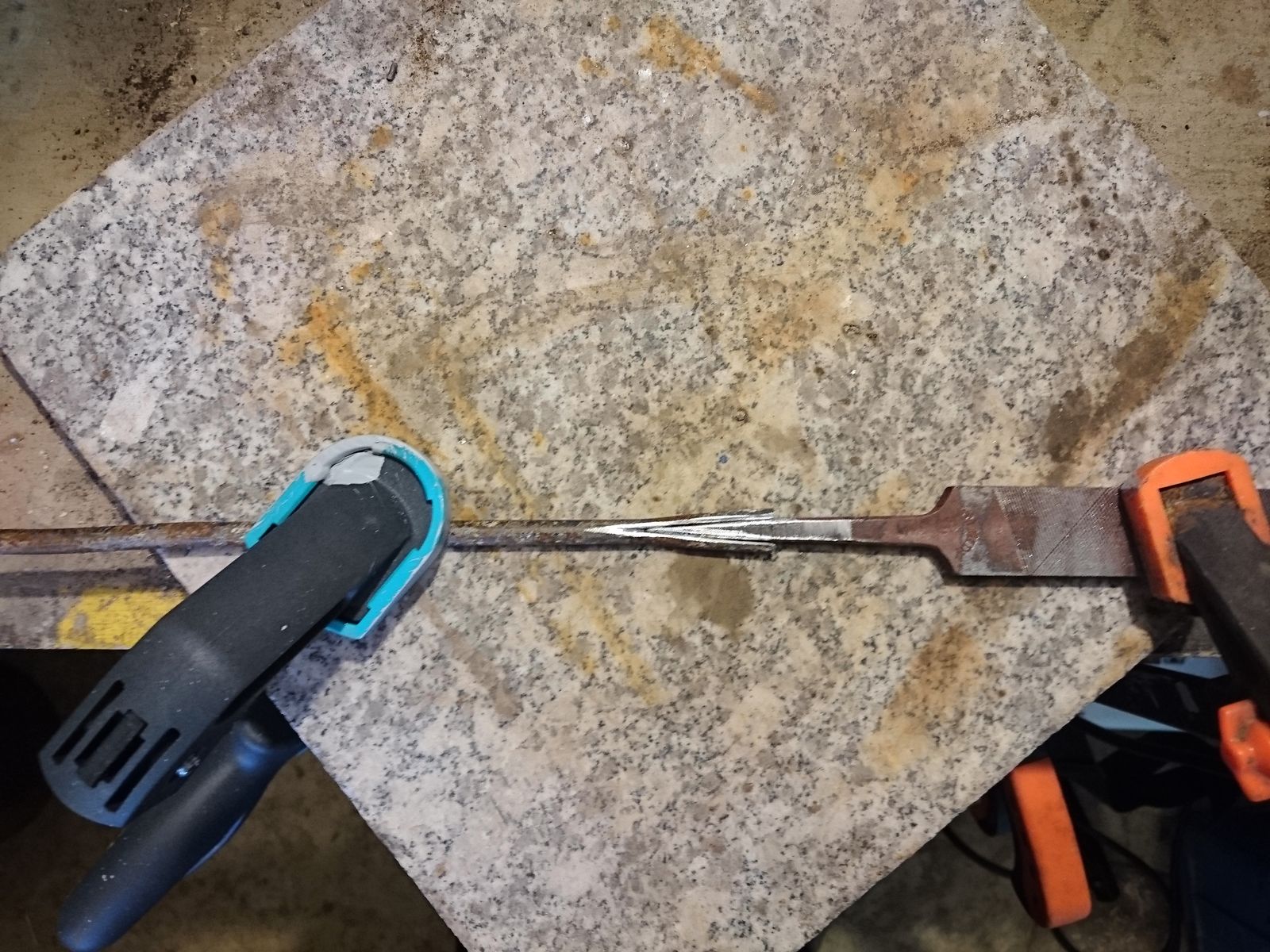

Fitted tang extension

Fitted tang extension

After that there came the trial by fire, or more precisely, electric arc. My first real welding. I admit I should have tried to simply weld scraps together a few more times before I try for something real. I should have. But learning skill on something that is subsequently thrown away simply is not me. I always try to learn on the real thing. Not smart, I know, but that is just me. I have already forced my self to try it once on scraps.

I must admit, I could not have done a better job. That is to say, the job is crap, but I lack the skill to do better. But it holds together even after grinding off the slag and rust from the whole thing. There are some visible slag inclusions in the weld, but it is definitively welded together and since it will all be hidden in the handle, I will not lose sleep over it. Hopefully no rampaging rhino will stamp on it and ruin it all.

Welded tang extension

Welded tang extension with slag.

File cleaned.

Cleaned and the tang ground to rough shape.

With that done I finally could do some work on the belt grinder. Since I do not have machinist’s blue, I used 1 cm thick blue marker to cover one side of the file. Then I have drawn the center line  and quarter marks using a steel ruler and a self-made steel marking needle. After that I ground the file into a symmetrical leaf shape. With that I was done for the evening and I will resume the work at some other random date.

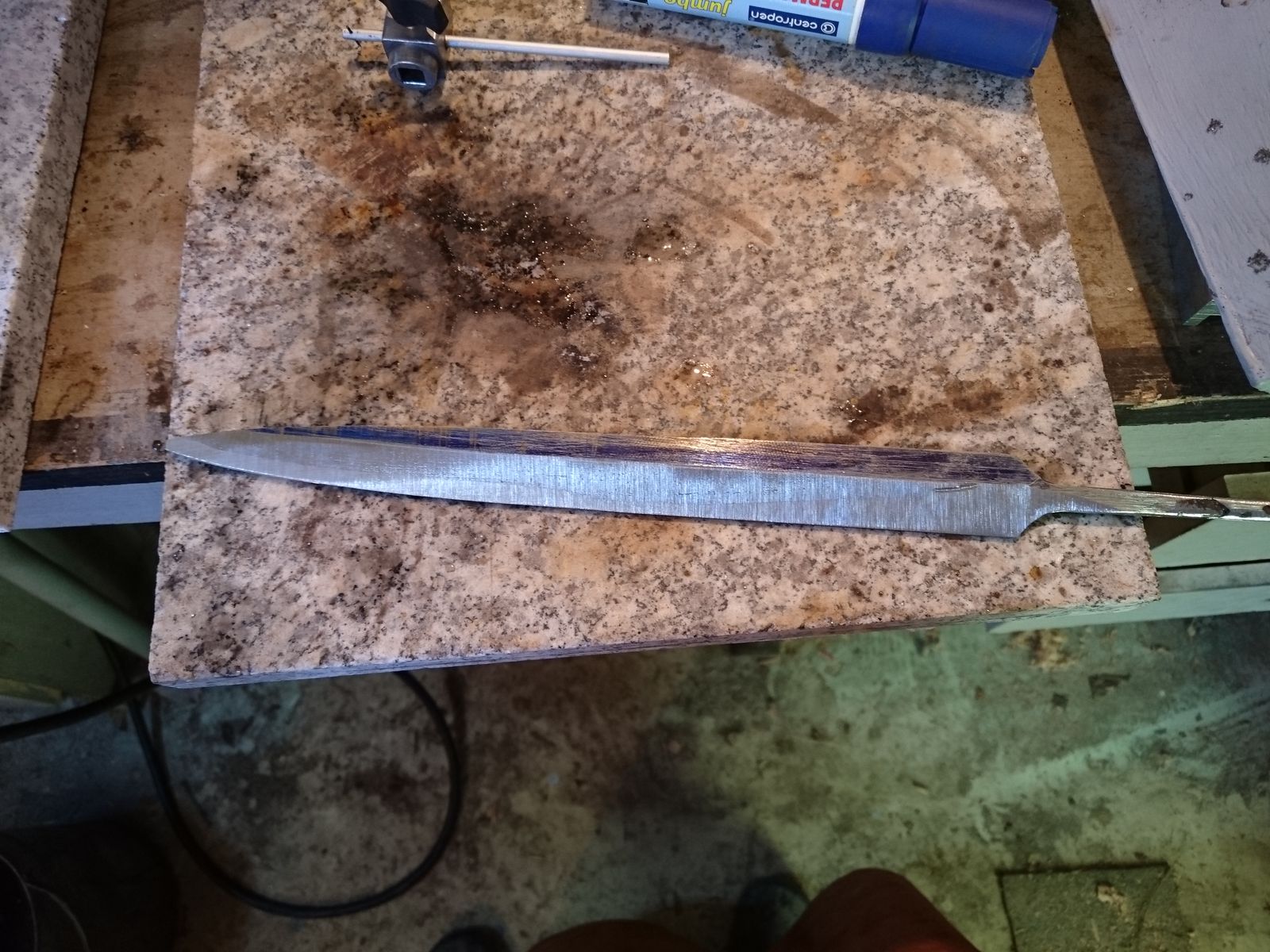

ground basic blade outline

©Charly, all rights reserved.

There Is Such Thing as Too Much “Weapons” Regulation

Over the years I have expressed in multiple comments under various articles on FTB that whilst strict regulations of access to weapons are necessary, the strength of the regulations should be proportional to how effectively enforced they can be. Regulating automatic guns makes sense because they are difficult to manufacture and conceal. That makes it possible to effectively limit access to them and enforce the regulation in a meaningful way.

On the other hand I have always seen trying to regulate knives, swords and similar as absurd because such regulations just cannot work as intended. Making a functional knife or even a sword is trivial, all you need is a piece of cord, a flat bar of any type of steel whatsoever, and half an hour work with angle grinder. Sure, it will not be beautiful, and if the steel is crap it will not hold an edge, but that does not matter, it will be effective murder weapon of equal quality to what was used most of history in warfare. And concealing a knife on your body under clothing is trivial.

UK has nevertheless decided to pass such a meaningless regulation:

Luckily I am not living in UK and CZ has not jumped the shark yet and knives are completely unregulated here. But should such laws pass here, I could perhaps get into problems when trying to buy certain tools for my hobbies – for example I intend to work with leather at some future date and for that I will need to either buy or make a few specialized cutting instruments, aka knives. I live in rural area and I definitively have no corner shop around that could supply those things on demand.

I feel sorry for all the antique weapons dealers and all the knifemakers in UK – like the excellent Tod Todeschini, whose carefully build livelihoods can be destroyed in an instant with ham-fisted regulation.

I might add that to my knowledge this regulation has been proposed and written by conservative politicians. Similarly like the US knife regulations, which are stricter than firearms regulations in some states, were too written by conservatives. Laws that are either impossible to effectively enforce or are impossible not to break serve no other purpose than to give police a pretense to for example harass people of inconvenient shade of skin at will, nothing more.

And just for “fun” (which is not funny at all) I will list all the object that could be used as murder weapons and are in my line of sight right now, near my computer:

  1. Stabbing – screwdrivers, shears, pencils, ball-pens and admittedly a dagger that I use as letter opener.
  2. Cutting – a carpet cutter and again my dagger.
  3. Garotting – USB cable seems strong enough and definitively the camera strap.
  4. Blunt instruments – the camera (not the first choice of course), two heavy mugs, two ornamental stones, a few potted plants.

Not to mention the about 8 kitchen knives of various sizes on the kitchen counter behind my left shoulder.

If I were to go to my workshop or my garden shed I would have a wide choice of multiple potential cutting or stabbing weapons, blunt instruments and pole-arms. Should I decide to go and join a gang, I would not be unarmed. Indeed I could arm the whole gang. So could each of my neighbours.

Whilst firearm deaths can be linked to firearms availability, stabbing deaths cannot be linked to knives availability. Because stabbing instruments are everywhere and will be everywhere, always. As Sam Vimes’ maxim states “Everything is a weapon if you decide to think of it as such”. Addressing knife crime needs to address the root cause. And I do not think I am stabbing in the dark here when I say that has more to do with impoverishment and disempowerment than with sending knives per post.

Sharp and Shiny.

From Charly: This is the knife I have given to my Mom for Christmas. Scary sharp – I could slice that tomato paper thin. Seems to hold edge well, it was already used since I made it and the edge was not touched up prior to photographing.

Measurements: Overall length ~26 cm, blade ~14 cm lenght, ~2 mm thick, blade grind convex with no secondary bevel.

Materials: handle scales chemically treated Elder wood (Sambucus nigra) coated with PU, blade N690 steel hardened at home in impromptu settings.

I hope to improve the design based on my mothers feedback and make more knives like this one in the future, it was fun. Beautiful! Click for full size.

© Charly, all rights reserved.

Pointy!

From Charly, who I think is being much too modest:

This is the first knife I have made with the help of my out-of-scraps built belt sander and my drill powered lathe. Because this was a learning exercise for me, I took a bunch of old worthless stuff – a rusty file, rusty pipe, some old hinges, broken furniture legs and a piece of cow bone dug out of the ground in the garden. I have also deliberately used only the machines to do most of the work, including polishing – I wanted to see what kind of fit and finish I will be able to get this way.

Because it was learning exercise and because the materials were of bad quality (the pipes were a bit too rusty, I sanded through them at a few places) the result is not something too great, but it is sharp, pointy and dangerous. The design is a sort of hybrid between the Fairbarn-Sykes and a medieval rondel dagger and I freehanded most of it, with almost no measurements.

Stats: overall lenght 33,5 cm, blade length 22 cm, work time approx 12 hours (not including curing of the paint)

I am not intending to stab anyone, but it is extremely good letter opener. Click for full size!

© Charly, all rights reserved.
